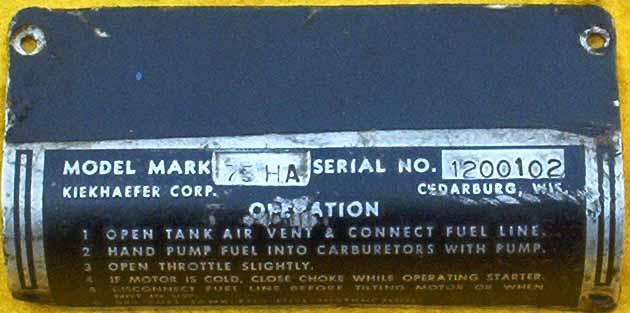

THE BASICS:Here's some photos of the Mercury Mark 75 H (or 75HA as Merc referred to it as). This first set is how they looked,more or less, from the factory in 1957.As the story goes, Merc only put out 25 of these. Sticker price was 1300$.The serial numbers ranged from 75HA1200065 - 75HA1200090. The powerhead is really the most elusive part of the whole engine....when you consider how they were all modified to alky right out of the box.They all came equipped with KA6A Tillotson carbs. the porting and flywheel were the same as the 55H. Reed blocks were close to Mk78's.The parts lists shows that the 2 fuel pumps were actually both run off a special base that bolted to the middle pump outlet. This was supposed to help balance the fuel to the carbs.Included with your new 75H were the tools to disassemble the lower unit, a test wheel, parts catalog and 3 props.

 image11.jpg (22420 bytes) image41.jpg (52112 bytes)     image1583.jpg (31736 bytes) 75Hfuelsetup.jpg (82395 bytes) 75Hseraialtag.jpg (49525 bytes) image1563.jpg (36780 bytes)

LOWER END:Here's the stuff that makes this engine so neat....the tower and foot. Going away from the standard Quicksilver lower unit Merc introduced a front loading single pinion "pre-speedmaster" lower unit.Besides looking a lot different from the Quickie, this unit also required the tower housing to be complete.All the engines up to this point had a tower the would join the saddle assy by means of a swivel pin. This unit did too, but there was only one bushing in the tower..the other was in the foot.There were replacement service units and towers made for a few years later.This is why there are a few more than 25 known to still be around.Here's a few pictures of the tower and lower units. Here are the part numbers for the lower unit and tower. If you look them up in Merc's "where used" book, They'll say MK75A not H.

Lower unit part # 1618-1489a 2
Tower housing  # 1536-1488a 1               Call your may find one!!

     image21.jpg (28868 bytes) image27.jpg (19508 bytes) image24.jpg (28832 bytes)    image29.jpg (40988 bytes) image28.jpg (38712 bytes) image32.jpg (31892 bytes)

VARIATIONS: There were early and late units.Casting numbers on the housings and water intakes were totally different. The early units were actually about 3/32" thinner in the torpedo and drive shaft pinion area than the later. After much use, and being hopped up on fuel, they found that the weak link was the thin pinion bearing area above the torpedo. Some units failed in this area. Look for weld marks. You will also see welding on the towers and feet around the 2 rear studs to help strengthen that problem area.
The pinion gears really wore bad, being a 1-1 ratio and almost as small as D's.There were some 14-15 gears made as well as 1-1 copies to help keep the motors out and running.

Another oddball note. Merc toyed with overdrive units as well. Here's one that survived from Lake X.This was when the Starflites had the records.

  image26.jpg (29916 bytes) image30.jpg (31816 bytes) image47.jpg (28048 bytes) image23.jpg (20868 bytes)

AFTERMATH:When all was said and done, along came all the modified to alky engines.There were so many different changes and adaptions, not one 75H would look the same. People like Lon Stevens would really get these engines haulin'.Up here in region 10, we're lucky enough to still have about 3 of these motors still raced. No, they're not any competition for the Konigs, but they sure sound SWELL!
